MAX RGB Color Changing LED Rock Light Kit for RV's 8 Piece Ground Coverage

8 years of innovation has brought us to this light
Introducing the MAX from LUX


The MAX is the best RGB color changing LED rock light we have ever built. Now with proprietary Clean White Technology it offers the brightest, whitest, and cleanest light coverage of any RGB on the market. No need to compromise output with RGBW anymore! Our LED's are the latest in ceramic base LED technology combined with a diffusing solid polymer body...... this light is LIT!

As with all LUX lights the new MAX features the LUX patented magnetic mounting system making installation a breeze! No screwing, gluing or taping required. Just place on a flat metal surface and it is on!

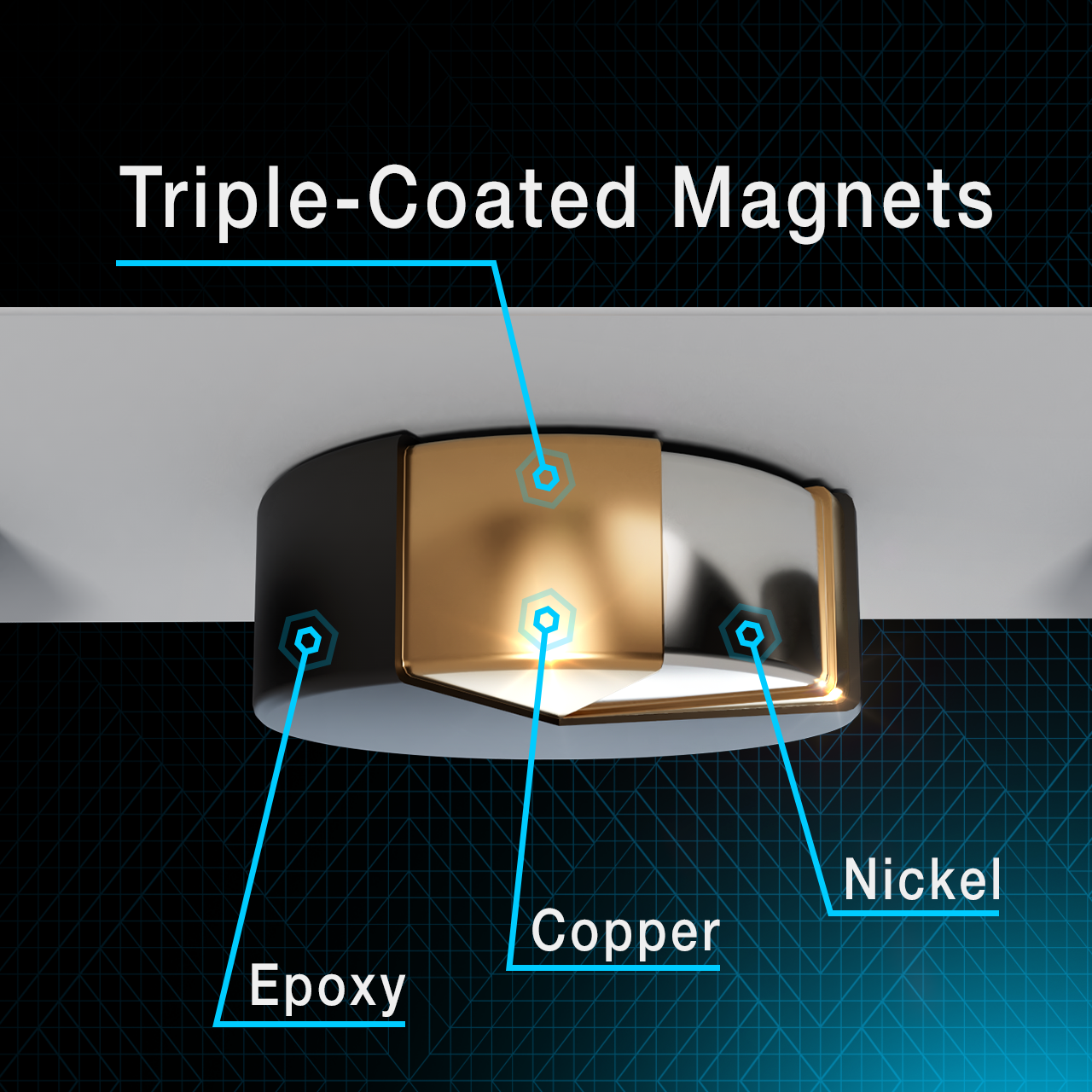

New for 2021 all our magnets are triple coated for unbeatable protection! First a nickel coating for hardness and strength, then copper for improved heat transfer, then epoxy for the ultimate in corrosion resistance. Just another example of how we continually look to improve our products..... not make them cheaper.

This 8 piece set is perfect for ALL RV tow vehicles, campers, RV's, and adventure vans regardless of wheelbase. 8 Lights are perfect for even and complete wheel well coverage.

Set Includes:

(4) MAX RGB LED rock lights with 10 foot leads

(4) MAX RGB LED rock lights with 20 foot leads



OPTIONAL INSTALLATION KITS:

Bluetooth RGB Controller 3 Zone:

Lots of power and lots of options! Independently control up to 3 zones, create groups combine zones and more! Easily power up to 12 LUX RGB lights per zone for a max of 36 lights. Easy combine or group zones, rename zones to keep organized, or control all zones at one time. 16 million color options, strobe, fade, dim, color patterns and more! Simply connect the red battery wire to your battery positive terminal and the black battery wire to your negative battery terminal, route light leads into box and connect the colored wires to the colored screw terminals.... it is that easy!

Bluetooth RGB Controller Single Zone:

Easily power up to 12 LUX RGB lights. 16 million color options, strobe, fade, dim, color patterns and more! Simply connect the red battery wire to your battery positive terminal and the black battery wire to your negative battery terminal, route light leads into box and connect the colored wires to the colored screw terminals.... it is that easy!

Once again... LUX sets the bar to a new height with the all new MAX!



***LIGHT MUST BE MOUNTED TO A FLAT METAL SURFACE FOR PROPER HEAT DISSIPATION***

  • Q. How do they mount?
    A. All our lights feature high power neodymium magnetic mounting. Just place the light on a flat metal surface and you are done. No drilling, screwing or taping required. The strength of the magnets far exceeds what is required to hold the lights in place.

    Q. Why aren't your lights RGBW?

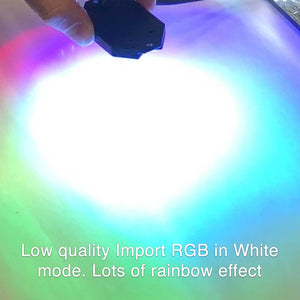

    A. Our evaluation of competitive product while developing the MAX RGB was that RGBW was a significant disadvantage. RGBW was developed as a result of 'fixing' a color mixing problem on low cost import products. Additionally RGBW reduces the output of White by 75% since only 1 of 4 LED's is lit in 'white' mode. The MAX RGB features proprietary Clean White Technology, has perfect color mixing and offers incredibly bright white coverage without the rainbow effect of the low cost import products. In 'white' mode the MAX is using all 12 of its emitters blowing away our RGBW competitors.

    Q. How are your lights so much brighter than the import products?

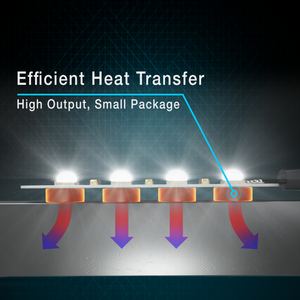

    A. The secret is our magnetic mounting. LED light output is all about moving heat away from the LED so you can drive it harder. Our competition uses large aluminum housings to dissipate heat. This limits the viewing angle of the LED's and limits how much heat can be dissipated. With the LUX light our patented magnetic mounting system moves heat from the LED's through the magnets and dissipates into the mounting surface allowing us to drive our LED's harder producing more light.

    Q. Can I hook them to my Spod, Switch Pros, or OEM Aux switches?
    A. Yes, all our controllers can be connected to any AUX switch system including Spod, Switch Pros, and OEM AUX switches. Simply connect the black battery wire from the controller to ground and connect your AUX switch output to the red battery wire on the controller. ***DO NOT remove the inline fuse***

    Q. Do I have to have a controller?
    A. If you want to be able to change colors you will need some type of controller. You do not have to buy ours (although we would like it if you did). Any 12vdc automotive RGB controller that is common positive will work. If you just want a single color, our lights can be hardwired without a controller for 7 different colors: Red, Blue, Green, White, Teal, Yellow and Purple.

    Q. How bright are they?
    A. Have you stared at the sun lately? We do not post lumens because it is an irrelevant measurement for rock lights, there is also no governing our competition to see if their specs are accurate. We will say that in a consumer test where the brands of the lights were not given that LUX won 9 to 1 in brightness and light coverage when mounted to a Jeep even over competitors costing 4X as much. We have a 100% money back satisfaction guarantee backing this up.

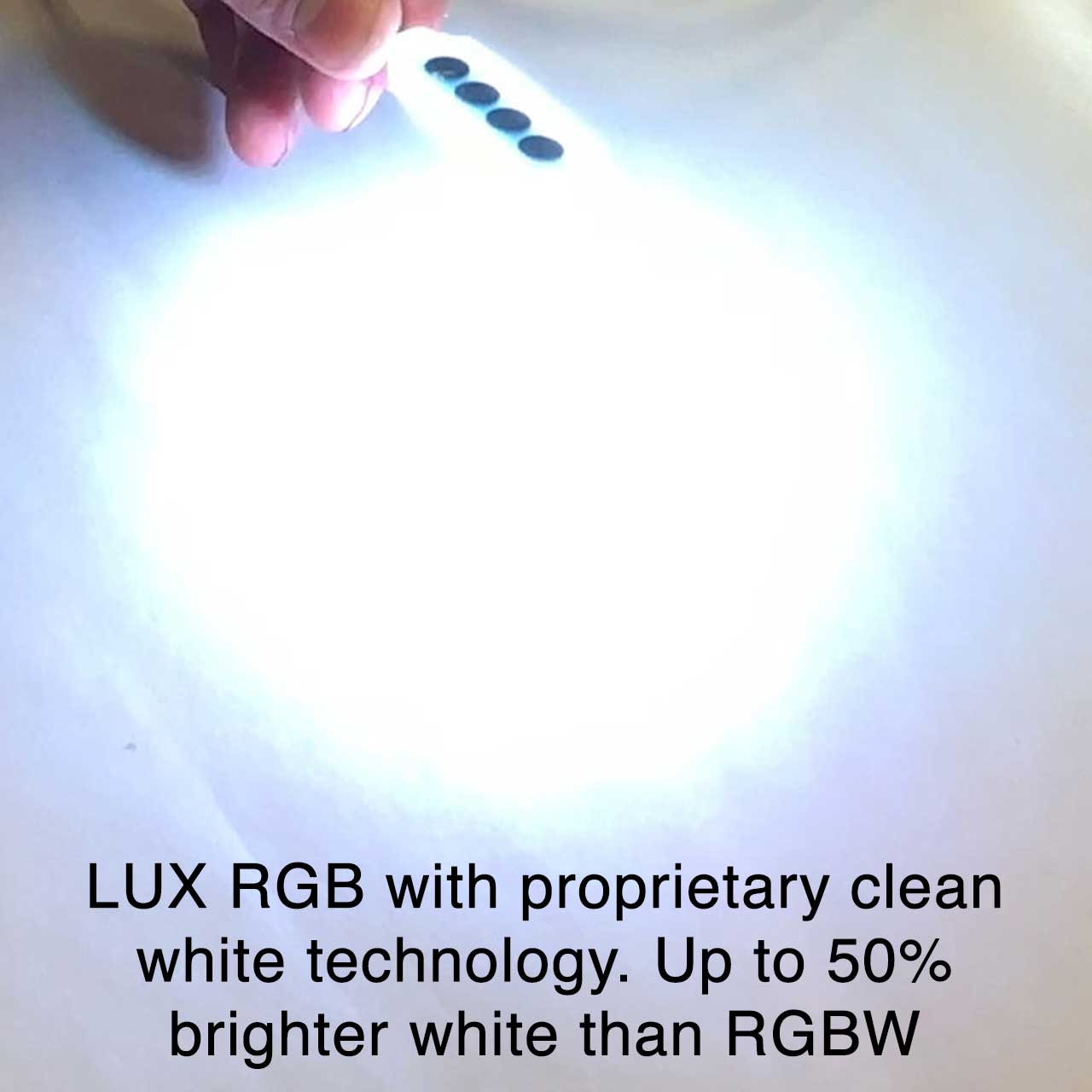

  • RGB with Clean White Technology
    No need to settle for the low white output RGBW anymore. The new LUX MAX RGB with proprietary Clean White Technology offer the brightest, whitest, cleanest white of any RGB light on the market. Up to 50% brighter white than RGBW!

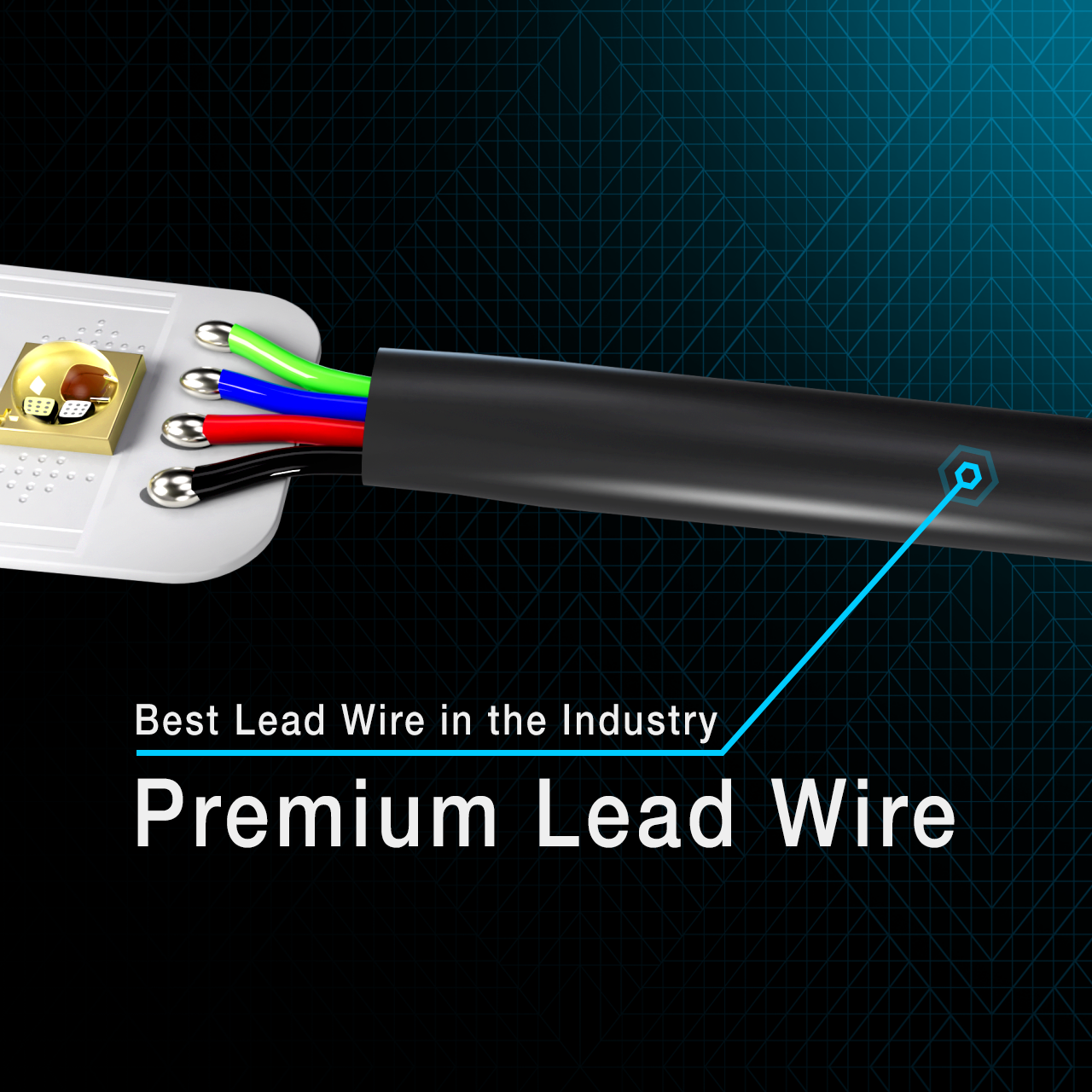

    Premium Lead Wire
    We are proud to offer the best lead wire in the industry. We have our lead wire specially made just for us to our specs. Designed to be flexible, yet incredibly durable, able to withstand high heat engine compartments, fuel and oil resistant - and the best part? It is manufactured right here in America for us - NOT made in China!

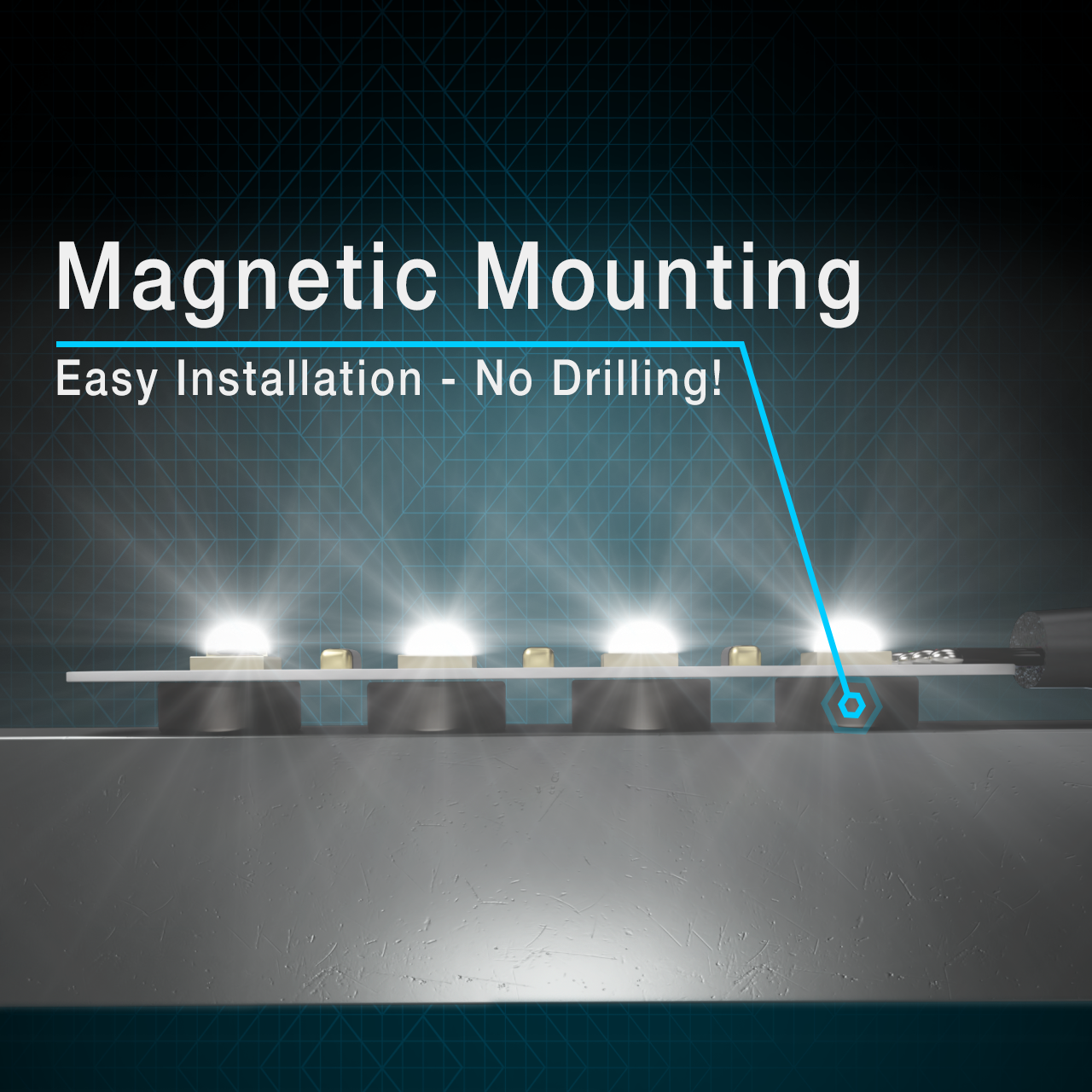

    Magnetic Mounting
    The LUX proprietary and patented magnetic mounting system is more than just a mounting system. Our magnets are engineered into the thermal path of the LEDs moving heat away from the LEDs into the metal they are mounted to! This allows us to produce a tremendous amount of light out of a very small package. Our customers love them because they are easy to install, can be moved easily and do not require any drilling, screwing, taping, or gluing to install.

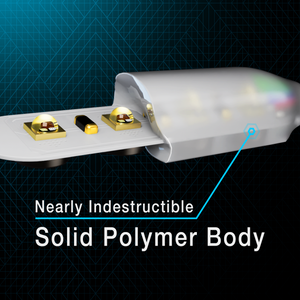

    Solid Polycast Body
    The LUX proprietary and patented solid polycast body sets us apart from all other LED rock lights. Unlike our competitors that have a thin aluminum housing and a thin polycarbonate lens, the LUX lights are a solid block of Epoxy - completely impenetrable from the elements and nearly indestructible. In addition to providing the strongest LED rock light out there, our polycast body gives the broadest light pattern on the market because there is no need to 'shroud' the LEDs with an aluminum housing.

    Committed to America
    At LUX we are committed to building our products right here in America. Not only do we build them here, we are also committed to sourcing as much of our raw materials from American manufacturers as we can. From our lead wire, to our polymer resin, right down to the rubber band holding the leads.... if we can buy it in America - WE DO!

  • RV's and Campers
    Perfect addition to any camper, RV, tow vehicle or adventure van!

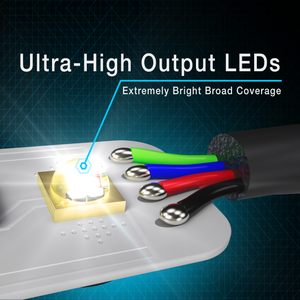

  • LED
    Package size: 3535
    Construction: Ceramic base
    Power Rating: 3 watt
    Color: Red 620nm, Blue 460nm, Green 520nm

    Lead Wire
    Size: 22awg stranded copper 4 conductor
    Insulation: 4.5mm diameter pressure extruded thermoplastic elastomer
    Standards: Sunlight, Fuel and oil resistant. RoHS II and REACH compliant
    Temperature Rating: -40 deg C to 105 deg C
    Length: 10 foot or 20 foot
    MADE IN THE USA!

    Magnets
    Construction: Neodymium
    Classification: N45H
    Size: 8mm dia. 3mm thickness
    Coatings: 1st layer nickel, 2nd layer copper, 3rd layer epoxy

    Output/draw
    Lumens: Confidential
    Draw: Approximately 100mA per color channel @13.5vdc
    Max Voltage: 14.5VDC

    Body
    Material: 2 part aliphatic urethane system
    Hardness: 80+-2 Shore D
    Tensile Strength: 4000psi
    Flexural Strength: 7200psi
    Compressive Strength: 7150psi
    Curing: 8+ hours at 150deg F under 60PSI pressure
    Standards: Fuel and oil resistant, UV resistant RoHS compliant
    MADE IN THE USA!

LUX LED Rock Lights

Professional grade LED rock lights from LUX Lighting Systems are Substantially different and Substantially better than any other rock lights on the market. LUX's proprietary and patented technology keeps us way ahead of the competition in performance and quality.
