RGBW LED Rock Lights – 4 Piece Magnetic Fender Well Kit

Upgrade your vehicle with the MONSTER 4 Piece RGBW LED Rock Light Kit from LUX Lighting Systems — engineered for vibrant color control, clean installation, and unmatched durability.

This magnetic RGBW LED rock light kit delivers full fender well lighting for Jeep, truck, UTV, and off-road builds while giving you complete control over color and brightness through the included app and remote.

MONSTER rock lights are widely used for Jeep underbody lighting, truck rock lights, overland vehicle lighting, and commercial work truck applications.

Direct-Connect™ Wiring Architecture

This 4-piece RGBW LED rock light kit features LUX Direct-Connect™ wiring — our refined single-lead architecture engineered for flexibility, durability, and clean, professional installations across Jeep, truck, and UTV platforms.

Each light pod features a single 6" lead.
Each light runs independently back to the controller using included extension leads and splitters.

Why Choose Direct-Connect™?

• Maximum flexibility in pod placement
• Ideal for custom or asymmetrical layouts
• Works well for specialty builds
• Compatible with virtually any frame configuration

All required extensions and splitters are included for clean ground coverage on vehicles up to a 180" wheelbase.

If you prefer a simplified string-style installation with reduced wiring clutter, explore our Build-to-Fit™ magnetic rock light kits.

Fully Customizable RGBW Control

The included RGBW controller allows:

• Full color customization
• Adjustable brightness
• Static white mode
• Dynamic lighting effects
• App + remote control

From functional trail lighting to show-quality underglow — you control the output.

Small Package. Massive Output.

How does LUX produce so much light from such a compact design?

Our patented magnetic mounting system is the difference.

Unlike conventional rock lights that trap heat inside bulky aluminum housings, the LUX magnetic mount transfers heat away from the LEDs and directly into the vehicle’s mounting surface — allowing the LEDs to run cooler and brighter.

The result:

• Cooler-running LEDs
• Smaller, cleaner light pods
• Broad color-rich light spread
• High usable output

Effortless Installation. Industrial-Grade Hold.

No drilling.
No screws.
No glue.
No tape.

Simply mount the light to a clean, flat metal surface and it locks securely in place.

The MONSTER series uses a custom-cast N45H neodymium magnet engineered for extreme holding force and optimized thermal transfer.

Built to Last — No Shortcuts

Every LUX magnet is triple-coated for durability:

• Nickel — structural strength
• Copper — improved thermal conductivity
• Epoxy — corrosion protection

The solid polycast body is a fully encapsulated 2-part aliphatic urethane system that is:

• Impact resistant
• Fuel and oil resistant
• UV resistant
• Waterproof

What’s Included – Direct-Connect™ 4 Piece Kit

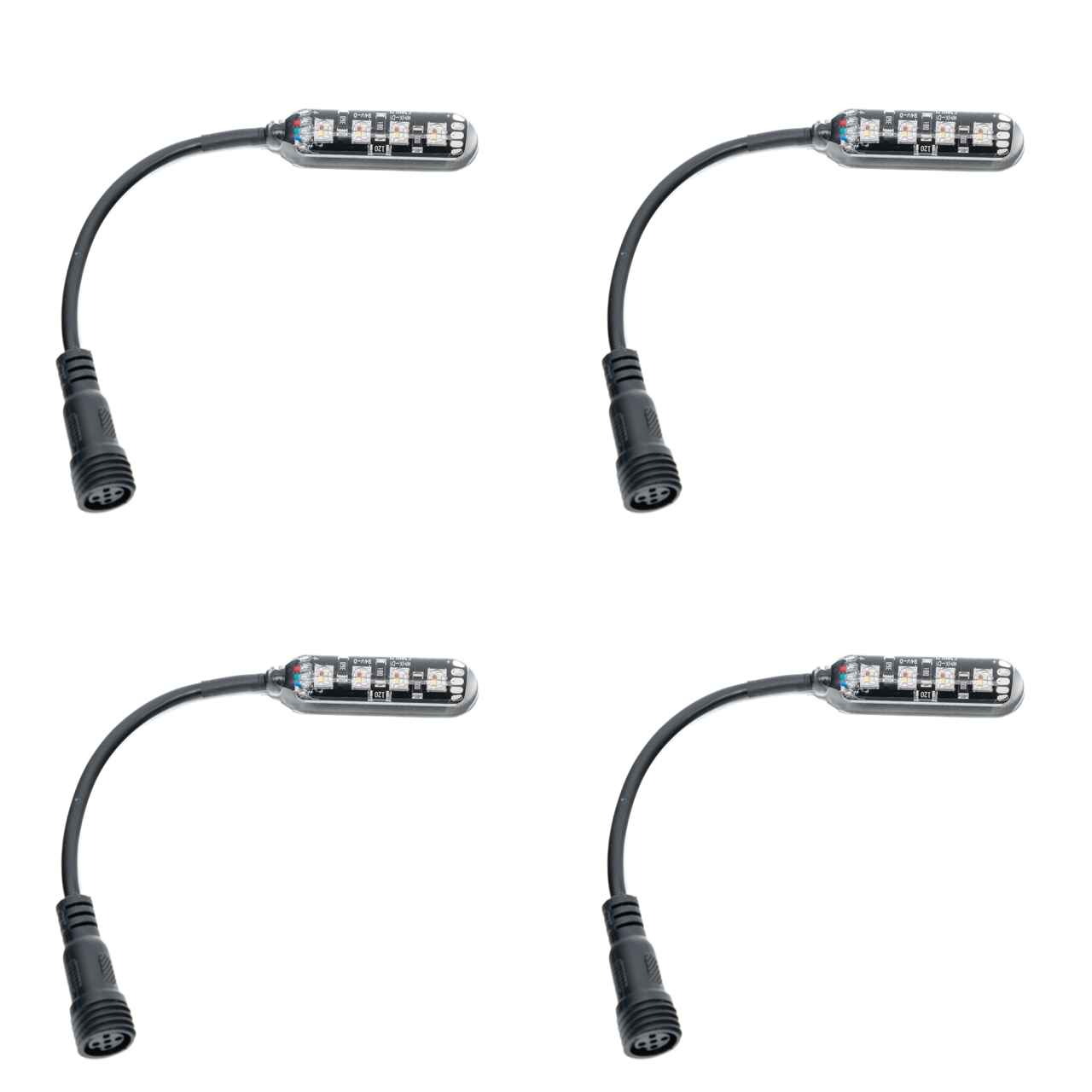

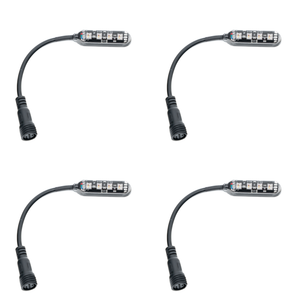

• (4) MONSTER RGBWMagnetic LED Rock Light Pods – single lead
• (1) High-output white controller with app + remote
• (1) 4-way waterproof splitter
• (7) 5FT waterproof extension leads
• (1) 10FT waterproof extension lead

Important Installation Notice

LIGHT MUST BE MOUNTED TO A CLEAN, FLAT METAL FRAME RAIL SURFACE FOR PROPER HEAT DISSIPATION.

The magnetic system is engineered into the thermal path of the LEDs.
Improper mounting can result in overheating and premature failure.

• FAQ
• Features
• Applications
• Specs

• Q. How do they mount?
  A. All LUX MONSTER RGBW LED rock lights mount magnetically to any clean, flat steel surface on the vehicle frame or chassis — no drilling, screws, glue, or tape required. For installations where a steel mounting surface is not available, optional metal mounting plates are available here.

  Q. What is Direct-Connect™?
  A. Direct-Connect™ is LUX’s refined single-lead wiring architecture designed for maximum placement flexibility and universal compatibility. Each pod connects back to the RGBW controller using included extensions and waterproof threaded connectors, allowing you to route each light exactly where you need it.

  Q. Why choose Direct-Connect™?
  A. Direct-Connect™ is ideal when you want independent routing for each pod — perfect for custom mounting positions, asymmetrical layouts, specialty builds, and unique frame configurations.

  Q. Do I need to order anything else with this kit?
  A. No. Each Direct-Connect™ kit includes the RGBW controller plus the required extensions and splitters for a complete installation. For the exact component breakdown, refer to the kit image and the “What’s Included” section above.

  Q. How do they hook up?
  A. Connect the included RGBW controller to any 12V DC power source. Then use the plug-and-play waterproof threaded connectors and included extensions/splitters to route each pod back to the controller.

  Q. How do I control the colors?
  A. The included RGBW controller allows you to customize color, brightness, and lighting effects using the mobile app or included remote. You can run full-color modes or switch to a bright white mode when needed.

  Q. How are your lights so much brighter than typical import rock lights?
  A. LED performance depends on thermal management. Most rock lights rely on bulky housings to handle heat, which limits how hard the LEDs can be driven in real use. LUX uses a patented magnetic mounting system engineered into the thermal path of the LEDs, transferring heat away from the light and into the vehicle’s mounting surface. This enables higher usable output from a compact light pod — designed for real-world output, not inflated numbers printed on a box.
• Direct-Connect™ Architecture
  Single-lead pods route independently back to the controller for maximum placement flexibility across different frame layouts and custom installs.

  Waterproof Connectors
  Heavy-duty threaded plug-and-play connectors ensure secure, weather-resistant connections.

  Patented Magnetic Thermal Transfer
  The LUX magnetic system is engineered for both holding strength and thermal transfer — moving heat away from the LEDs and into the vehicle mounting surface for compact, high-output RGBW performance.

  RGBW Controller
  Full app + remote control of color, brightness, and dynamic lighting effects, including a dedicated white mode.

  Solid Polycast Body
  Fully encapsulated polycast urethane body provides superior environmental sealing and impact resistance with a broad light pattern.
• Jeep
  Expanded underbody lighting for rock crawling, trail visibility, and custom Jeep builds.

  Trucks
  Full ground coverage and accent lighting for full-size and mid-size trucks, including underbody lighting for lifted and larger wheelbase vehicles.

  Overland
  Ideal for overland vehicle lighting, providing reliable ground illumination for campsite setup, gear access, and nighttime vehicle movement during extended travel.

  Work Trucks
  Commonly used for truck toolbox lighting, service body lighting, and ground lighting around commercial work trucks and utility vehicles.

  AMP Research Running Boards
  A popular solution for AMP Research running board lights, providing clean step illumination when entering or exiting the vehicle at night.

  ATV/UTV
  Enhanced ground visibility for trail riding, desert driving, and recreational off-road vehicles.

  RV/Camping
  Wide coverage ground lighting for campsite setup, trailer hookups, and maneuvering vehicles in low-light conditions.
• LED
  Package size: 5050
  Construction: Ceramic base
  Power Rating: 6 watt per light pod
  Color: RGBW (Red, Green, Blue, White)

  Lead Wire
  Size: 24awg stranded copper
  Insulation: 4mm diameter pressure extruded thermoplastic elastomer
  Standards: Sunlight, Fuel and oil resistant. RoHS II and REACH compliant
  Temperature Rating: -40 deg C to 105 deg C
  Length: 6 inches
  Waterproof plug and play threaded connectors

  Magnets
  Construction: Neodymium
  Classification: N45H
  Size: Custom Cast Shape
  Coatings: 1st layer nickel, 2nd layer copper, 3rd layer epoxy

  Body
  Material: 2 part aliphatic urethane system
  Hardness: 80+-2 Shore D
  Tensile Strength: 4000psi
  Flexural Strength: 7200psi
  Compressive Strength: 7150psi
  Curing: 8+ hours at 150deg F under 60PSI pressure
  Standards: Fuel and oil resistant, UV resistant, RoHS compliant
